Product & Services
Ropes, Hooks,
Heavy-duty rigging, lifting, and anchoring solutions – featuring ropes, shackles, hooks, and anchors for marine and industrial operations.
ROPES
High-performance ropes designed for superior strength, durability, and reliability in marine and industrial operations.

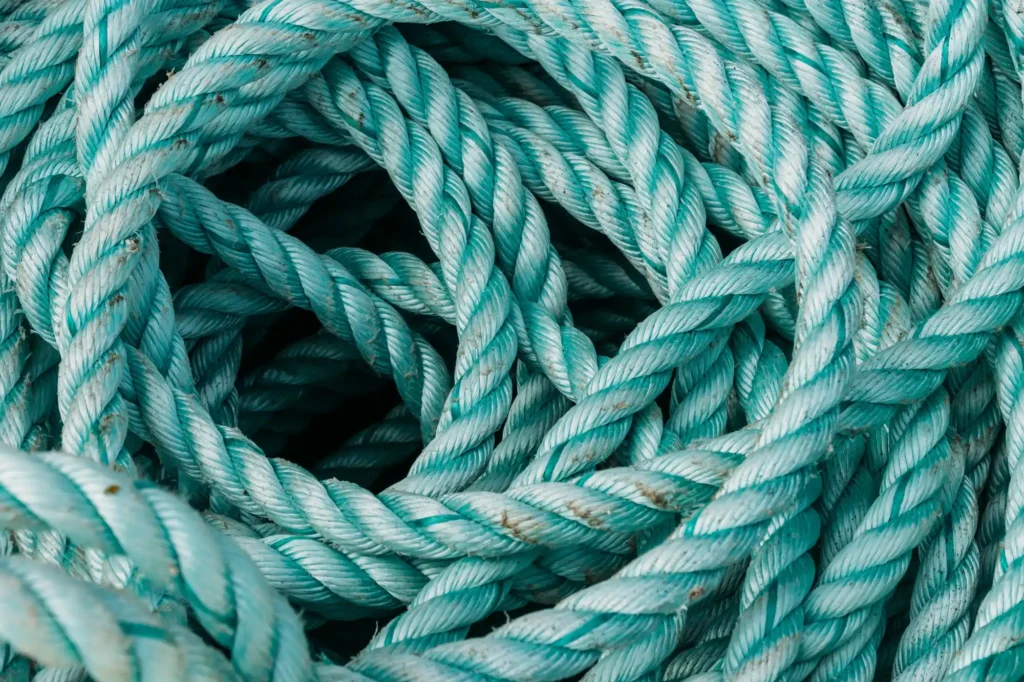

Nylon Rope
Strong, shock-absorbent rope ideal for lifting, anchoring, and heavy-duty marine applications.
- Types: Twisted • Braided • Double-braided
- Forms: Solid braid • Hollow braid • 3-strand twisted
-
Properties:
- Strength: High tensile strength – typically 45–80 MPa • Shock-absorbent • Abrasion-resistant
- Melting Point: 215°C (420°F)
- Elongation: High elongation percentage (23%)
- Diameter: 3 mm to over 100 mm
- Density: 1.14 g/cm³
- Features: UV-resistant • Knot retention • Excellent elasticity • Water- and rot-resistant
- Applications: Oil & Gas lifting • Marine anchoring/mooring • Construction hoisting • Industrial rigging • Offshore towing

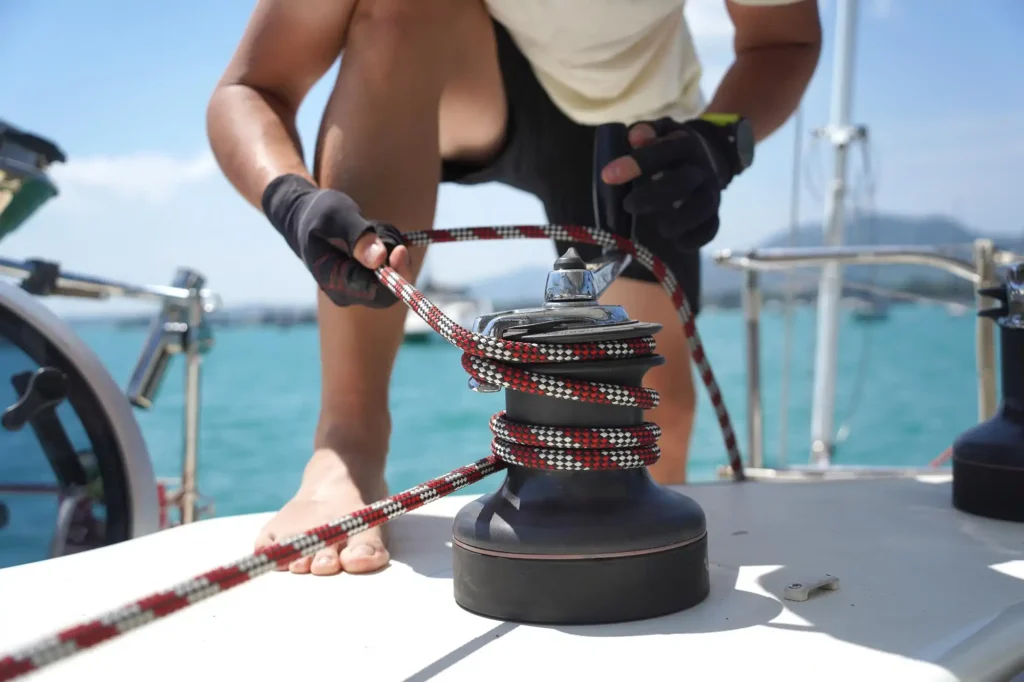

Polyester Rope
Low-stretch, UV- and abrasion-resistant rope suited for marine towing, docking, and load securing.
- Types: Twisted • Braided • Double-braided
- Forms: Solid braid • 3-strand twisted • 8-Strand Twisted
-
Properties:
- Strength: High load-bearing capacity • Low stretch • Abrasion-resistant
- Melting Point: Around 260°C (464°F)
- Elongation: Low elongation • Low creep
- Diameter: Small (6 mm) to large (140 mm)
- Density: 1.38 g/cm³
- Features: UV-resistant • Excellent wet strength • Chemical-resistant • Low elongation
- Applications: Mooring lines • Ship docking • Offshore operations • Heavy machinery handling • Oilfield load securing • Rigging
Steel Wire Ropes
Extremely strong, fatigue-resistant ropes engineered for cranes, winches, and offshore rigging.
- Types: 6×19 • 6×36 • 7×19 constructions
- Forms: Galvanized • Stainless steel • Coated (PVC/PP)
-
Properties:
- Strength: Extremely high tensile strength • Fatigue-resistant • Corrosion-resistant
- Melting Point: 1,370–1,500°C
- Elongation: Constructional elongation • Elastic elongation
- Diameter: 1.5 mm to over 140 mm
- Density: 7.85 g/cm³
- Features: Crush-resistant • Abrasion-resistant • Rotation-resistant options • High bearing capacity
- Applications: Offshore cranes • Mooring lines • Winches • Marine lifting • Oil rigging • Mining & heavy construction • hoist cables
HOOKS
Heavy-duty hooks engineered for secure lifting, towing, and load handling across oil, gas, and marine sectors.

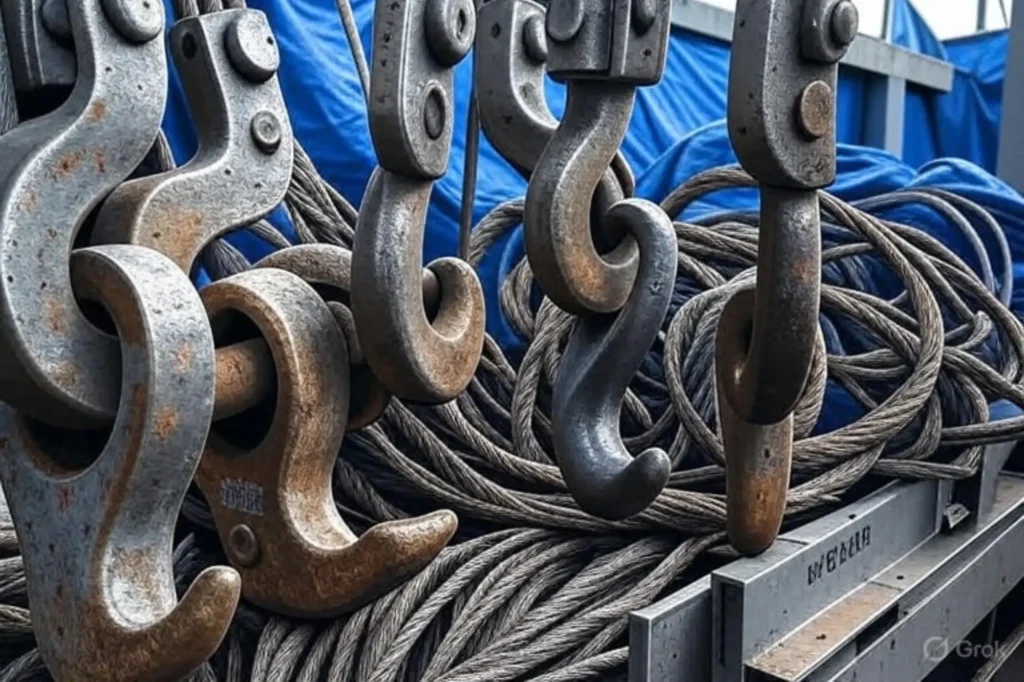

Lifting & Mooring Hooks
Robust hooks designed for reliable load handling, anchoring, and mooring operations in marine and industrial environments.
- Types: Eye Hooks • Clevis Hooks • Swivel Hooks • Foundry Hooks
- Forms: Forged steel • alloy steel • stainless steel
-
Properties:
- Strength: High tensile strength, typically ranging from 5 to 50 tons WLL
- Pressure Rating: Suitable for dynamic loads up to 10,000 psi in marine conditions
- Connection Type: Eye, clevis, and swivel connections
- Diameter Range: 6 mm – 50 mm
- Features: Corrosion-resistant coatings (e.g., galvanized or epoxy) • Load-tested for safety • Heat-treated • Designed for easy rigging
- Working Load Limit (WLL): 0.5 – 50 tons
- Applications: Cargo handling • ship mooring • offshore rigging • lifting equipment • towing systems

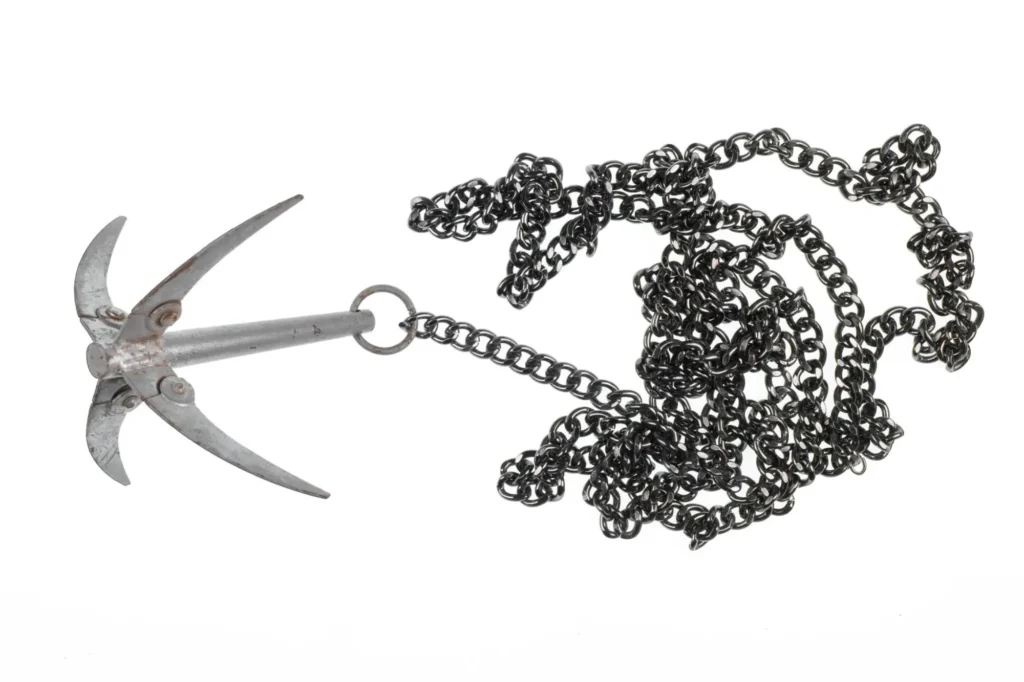

Grappling Hooks
Multi-pronged hooks engineered for retrieval, anchoring, and underwater operations in marine and offshore settings.
- Types: Folding Grappling Hooks • Fixed Grappling Hooks • Magnetic Grappling Hooks
- Forms: Forged steel • Galvanized steel • Stainless steel
-
Properties:
- Strength: Moderate to high tensile strength
- Pressure Rating: Suitable for marine depths • Surface retrieval tasks up to 5,000 psi
- Connection Type: Rope eyelets • Chain links • Threaded shafts
- Diameter Range: 10 mm – 40 mm
- Features: Rust-resistant coating • Collapsible design • Lightweight portability
- Working Load Limit (WLL): 100 kg – 5 tons
- Applications: Salvage operations • underwater exploration • retrieval of equipment • climbing/boarding • anchoring small craft

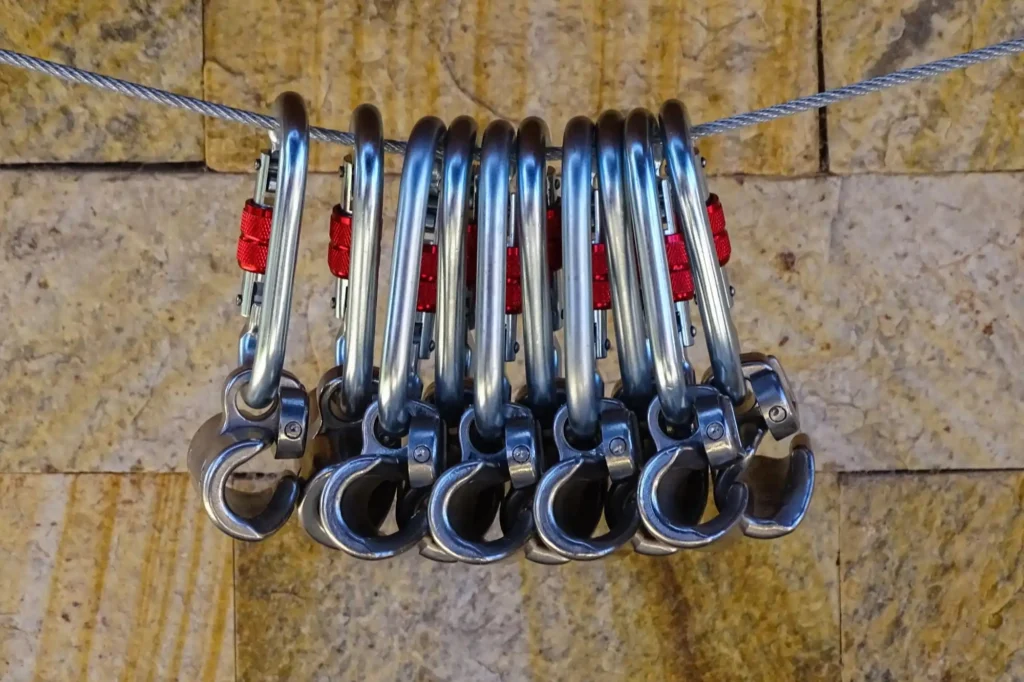

Quick Release Hooks
High-security hooks engineered for rapid release under load, ensuring safety in emergency and mooring operations.
- Types: Manual Quick Release Hooks • Remote-Release Hooks • Twin-Hook Systems
- Forms: Alloy steel • Marine-grade stainless steel
-
Properties:
- Strength: High load-bearing strength with safety release mechanisms
- Pressure Rating: Withstands extreme marine conditions • Up to 8,000 psi
- Connection Type: Shackle • Direct cable attachment
- Diameter Range: 12 mm – 60 mm
- Features: Quick disengagement • Corrosion protection • Mechanical or hydraulic release
- Working Load Limit (WLL): 1 – 200 tons
- Applications: Ship mooring • emergency release systems • offshore terminals • tanker berthing operations
SHACKLES
Robust shackles designed to connect, secure, and bear heavy loads in offshore and industrial operations.
Bow Shackles (Anchor Shackles)
Wide-bow shackles built for multidirectional loading in rigging and anchoring applications.
- Types: Screw Pin • Safety Bolt • Nut & Bolt
- Forms: Forged • Galvanized • Stainless Steel
-
Properties:
- Strength: High tensile strength • WLL 0.5–150 tons
- Pressure Rating: Suitable for medium to extreme load conditions
- Connection Type: Pin-to-eye • bolt-to-eye locking
- Diameter Range: 6 mm – 50 mm
- Features: Corrosion-resistant • wide bow for multiple sling connections • easy assembly/disassembly
- Applications: Offshore rigging and mooring operations • Oil and gas pipeline handling • Lifting heavy marine equipment • Shipbuilding and dockyard operations • Industrial construction and cargo securing

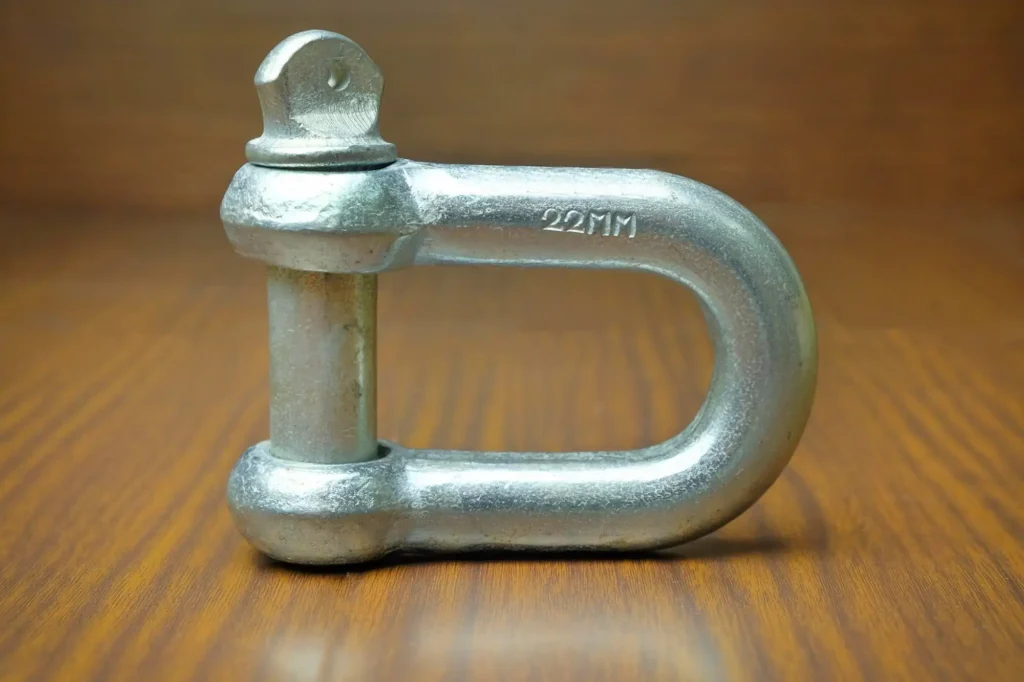

D Shackles (Chain Shackles)
Compact shackles optimized for inline chain connections and heavy-duty lifting.
- Types: Screw Pin • Safety Bolt • Round Pin
- Forms: Alloy Steel • Stainless Steel • Galvanized Steel
-
Properties:
- Strength: Straight-line pulls • Chain connections • WLL 0.33–55 tons • Breaking strength 4–6x WLL
- Pressure Rating: High-tension linear loads
- Connection Type: Pin and D-body for chain • Wire rope
- Diameter Range: 5 mm – 45 mm
- Features: Compact design • high load-bearing capacity • rust and wear resistance
- Applications: Oil rig chain lifting and load handling • Marine towing and securing • Subsea equipment lifting • Ship deck cargo restraint • Construction and mining haulage operations
Bolt-Type Shackles
High-security shackles with bolt and cotter locking for vibration-prone heavy operations.
- Types: Safety Bolt • Nut & Bolt • Captive Pin
- Forms: Forged Alloy Steel • Hot-Dip Galvanized • Stainless Steel
-
Properties:
- Strength: Critical lifting • Anchoring tasks • WLL 1–200 tons • Breaking strength 5–7x WLL
- Pressure Rating: High-vibration • Shock-load environments • Extreme dynamic • Static loads
- Connection Type: Bolt with nut and cotter pin locking
- Diameter Range: 8 mm – 55 mm
- Features: Tamper-proof • enhanced safety under vibration • durable finish for marine exposure • High-security locking
- Applications: Offshore drilling and subsea lifting • Oil and gas rigging under high vibration • Heavy machinery securing in marine transport • Ship anchor handling and towing • Industrial lifting, mining, and construction projects
ANCHORS
Robust marine equipment designed to secure vessels and structures with superior holding power across diverse seabed conditions.

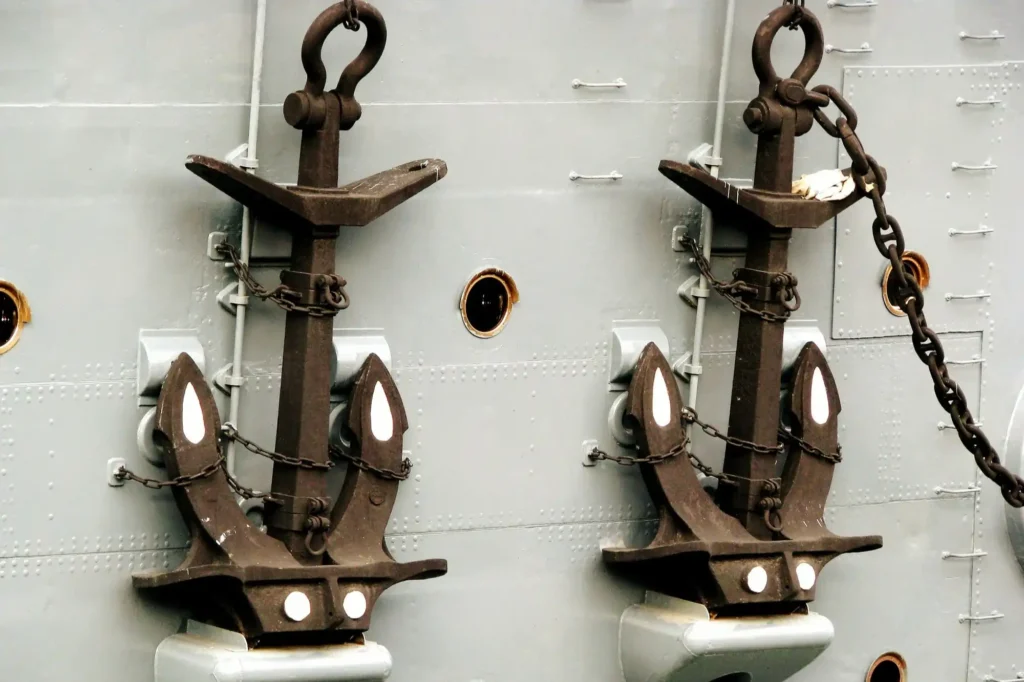

HHP (High-Holding-Power) Anchors
High-performance anchors engineered for exceptional grip and stability in demanding marine environments.
- Types: Fluke (Danforth) • Plow (CQR, Delta) • Claw (Bruce) • AC-14 • DA-1
- Forms: Galvanized steel • Stainless steel • Lightweight aluminum composite
-
Properties:
- Holding Power: 2x conventional anchors (HHP) • Up to 4x for SHHP (Super High Holding Power)
- Penetration: Effective in sand, mud, and mixed sea beds
- Stability: Resists breakout under tide/wind shifts
- Weight: 2.5 lbs – 70,000 lbs (vessel size-dependent)
- Features: Quick setting in varied sea beds • Reduced drag during deployment • Compact stowage design
- Applications: Offshore platforms • Oil & gas rigs • Large commercial vessels • Marine construction • Mooring in strong currents

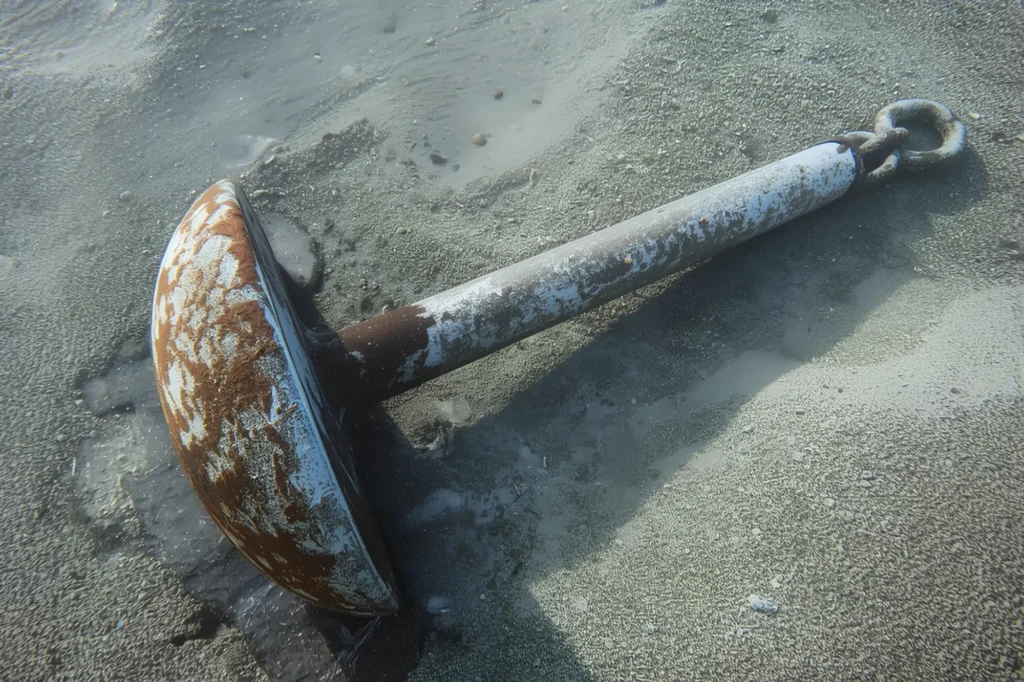

Mushroom Anchors
Heavy, bell-shaped anchors designed for permanent mooring in soft seabed conditions.
- Types: Standard mushroom • Modified mushroom • Navy mushroom
- Forms: Cast iron • Galvanized steel • Concrete-coated steel
-
Properties:
- Holding Power: Moderate, relies on weight and sediment buildup
- Penetration: Best in soft mud, silt, or sand
- Stability: High for static installations; low in rocky bottoms
- Weight: 10–500 lbs (application-dependent)
- Features: Reliable for permanent installations • Minimal seabed disturbance • High stability under tidal movement
- Applications: Buoys • Dredging operations • Oil & gas mooring buoys • Harbor moorings • Floating platforms

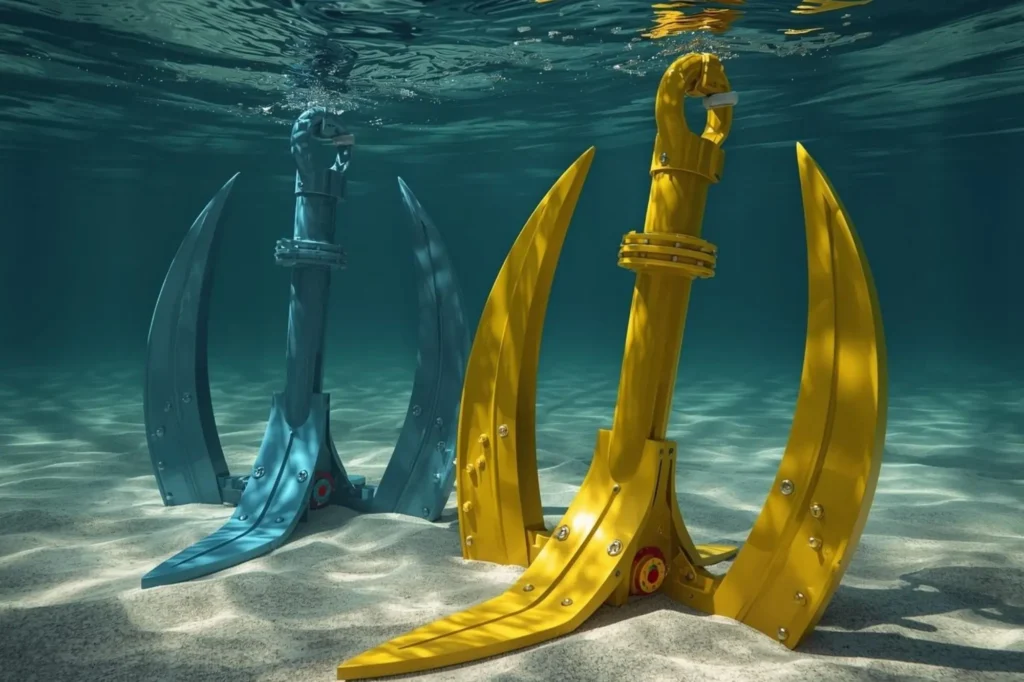

Drag Embedment Anchors
Versatile anchors that achieve holding power by embedding into the seabed during towing.
- Types: Bruce • Danforth • Grapnel • Vertically Loaded
- Forms: High-tensile steel • Galvanized carbon steel • Alloy composites
-
Properties:
- Holding Power: 33–50x anchor weight (depth-dependent)
- Penetration: Deep embedment via dragging or suction
- Stability: High in cohesive soils • variable in rocky conditions
- Weight: 250–380 tons (industrial piles)
- Features: Lightweight for handling • Fast setting • High efficiency in sandy and muddy sea beds
- Applications: Offshore support vessels • Cargo ships • Oil & gas exploration units • Temporary moorings • Fishing and dredging fleets
