CONTROL AND MEASUREMENT INSTRUMENTATION
Precision instruments engineered to monitor, analyze, and ensure operational safety and efficiency across industrial systems.

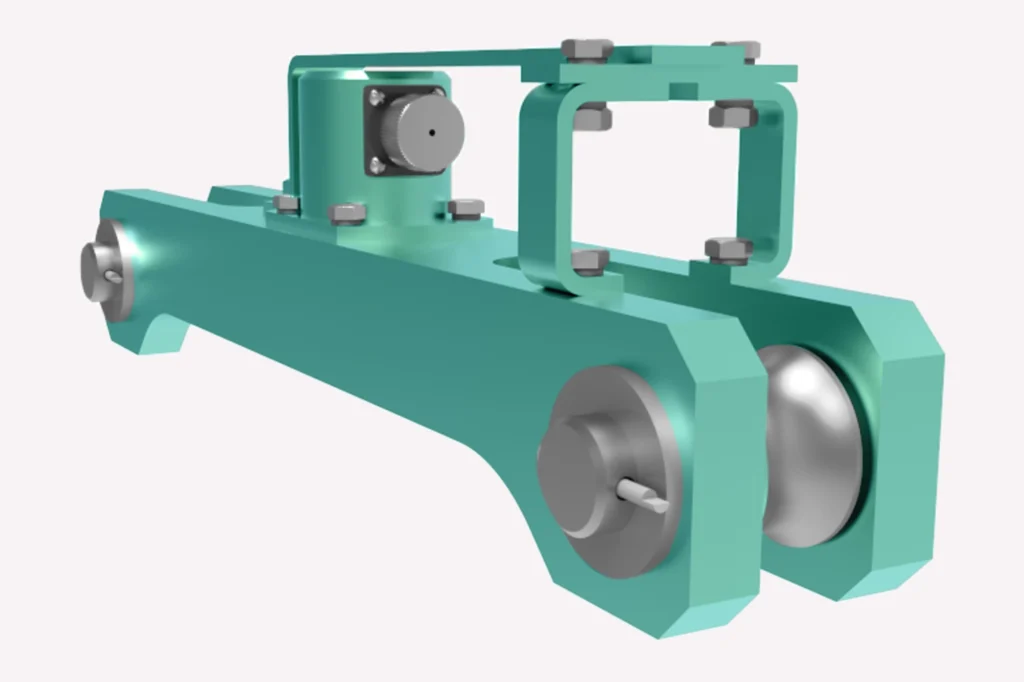

Load Sensors
Devices to accurately measure cable load, weight on hook, and tong torque.
- Types: Strain Gauge Load Sensors • Hydraulic Load Sensors • Capacitive Load Sensors
- Forms: Compact modules • Integrated sensor assemblies • Wireless-enabled units
-
Properties:
- Cable Diameter Options: 13–18 mm • 22–25 mm • 28–32 mm • 35–38 mm
- Load Capacity: 50–100 kN • 100–200 kN • 200–300 kN • 300–400 kN • 5 kN
- Power & Interface: Rated supply voltage 12–18 V • Digital interface RS-485
- Explosion Protection: EX marking II 2G Ex ib IIA T3 Gb
- Environmental Protection: Minimum ingress protection IP 65 • Ambient temperature range -45°C to +65°C
- Applications: Interchangeable sensors (same size) • Ex-rated • High load capacity • Multi-cable compatibility • Explosion-proof certified • IP65 ingress protection • RS-485 with Modbus support • Compact, durable build • Wide temperature tolerance
Gas Analyzer
Designed to detect and measure gas concentrations of methane and hydrogen sulphide gases for safety compliance and process control.
- Types: Portable Gas Analyzers • Fixed Gas Analyzers • Multi-Gas Analyzers
- Forms: Handheld units • Panel-mounted systems • Rack-mounted modules
-
Properties:
- Relay Outputs & Capacity: 2 relay outputs (up to 30 VDC) • 2 A switching capacity
- Explosion Protection: TR CU 012/2011 – 1 Ex db[ib] IIC T5 Gb X • ATEX – II 2G Ex dbib IIC T5 Gb
- Power & Efficiency: 12–24 VDC supply (maximum 2 W power consumption)
- Ingress & Environmental Protection: IP66 rating • Operating range of -40 °C to +50 °C
- Communication & Integration: RS-485 interface • Modbus protocol • Optional 4–20 mA analog output
- Features: Informative Display • Protective visor • Deep glare enclosure • Explosion-proof protection
- Applications: Oil and gas facilities • Power plants • Chemical processing units • Environmental monitoring

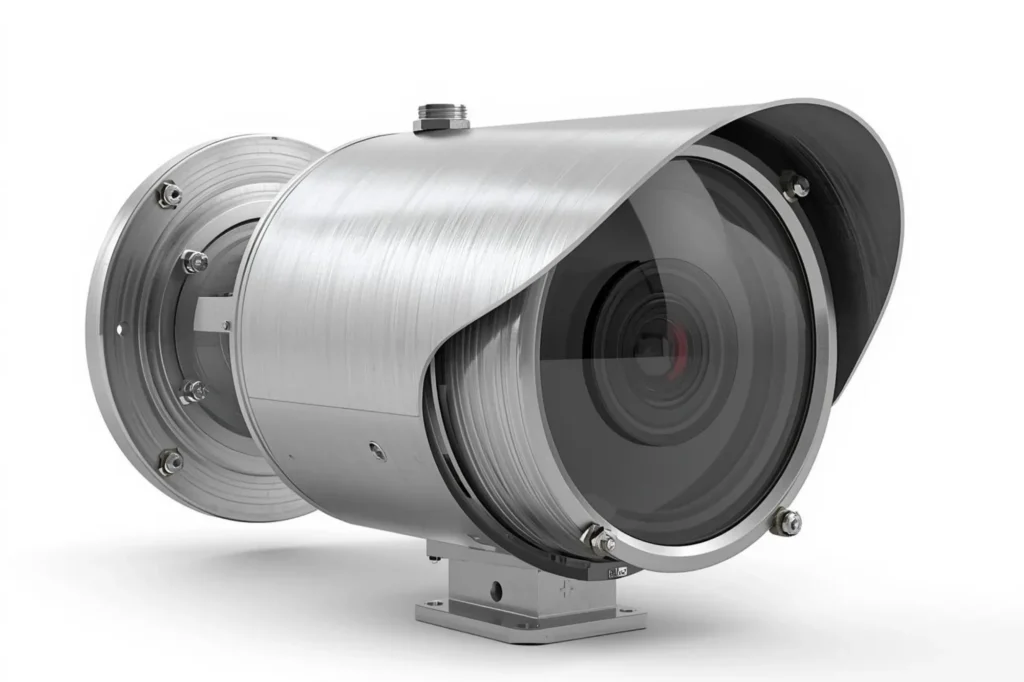

Explosion-Proof CCTV Camera
Rugged surveillance cameras to operate safely in hazardous or explosive environments.
- Types: Fixed Explosion-Proof Cameras • PTZ (Pan-Tilt-Zoom) Explosion-Proof Cameras • Thermal Explosion-Proof Cameras
- Forms: Wall-mounted • Pole-mounted • Dome enclosures
-
Properties:
- Image & Lens: 1/2.8’’ Progressive Scan CMOS • 2 or 4 MP • Max resolution 1920×1080 px • Aperture F1.6 • Lens options 2.8 mm / 4 mm / 6 mm • Viewing angles 107°/57°/127° • 87°/46°/104° • 54°/29°/63°
- Sensitivity & Video: Photosensitivity 0.005 lx (AGC on) • 0 lx (IR on) • Main stream H.265/H.264/H.264+/H.265+ • Additional stream H.265/H.264/MJPEG
- Movement: Roll 0–360° • Pan 0–360° • Tilt 0–90°
- Connectivity & Power: RJ-45 auto 10/100M Ethernet • PoE (802.3 af)
- Safety & Protection: EX Marking IEC 1 Ex db IIC T6 Gb X • IP66 • Operating temp -60°C to +60°C
- Dimensions & Weight: Ø104×111 mm • 4 kg
- Features: Explosion-proof protection • Weatherproof design • Sealed enclosure
- Applications: Oil and gas platforms • Petrochemical plants • Hazardous manufacturing facilities • Offshore drilling rigs
PRECISION GAUGES
Accurate measuring instruments designed to monitor pressure, threads, and liquid levels in oil, gas, marine, and industrial applications.
Pressure Gauges
Precise measurement instruments for monitoring fluid and gas pressures in industrial systems.
- Types: Bourdon Tube • Diaphragm • Capsule • Digital
- Forms: Stainless steel • Brass • Monel • Explosion-proof housings
-
Properties:
- Pressure Range: 0–30,000 psi (0–2,000 bar)
- Accuracy: ±0.1%–1.6% of span
- Operating Temp: –40°C to +150°C
- Protection: IP65/IP68 • ATEX/IECEx certified
- Dial Sizes: 2.5″–6″
- Features: Shock- and vibration-resistant • Glycerin/silicone filled • Chemical seal compatible • Intrinsically safe options
- Applications: Drilling rigs • Wellheads • Choke manifolds • Mud pumps • Hydraulic systems • Offshore platforms

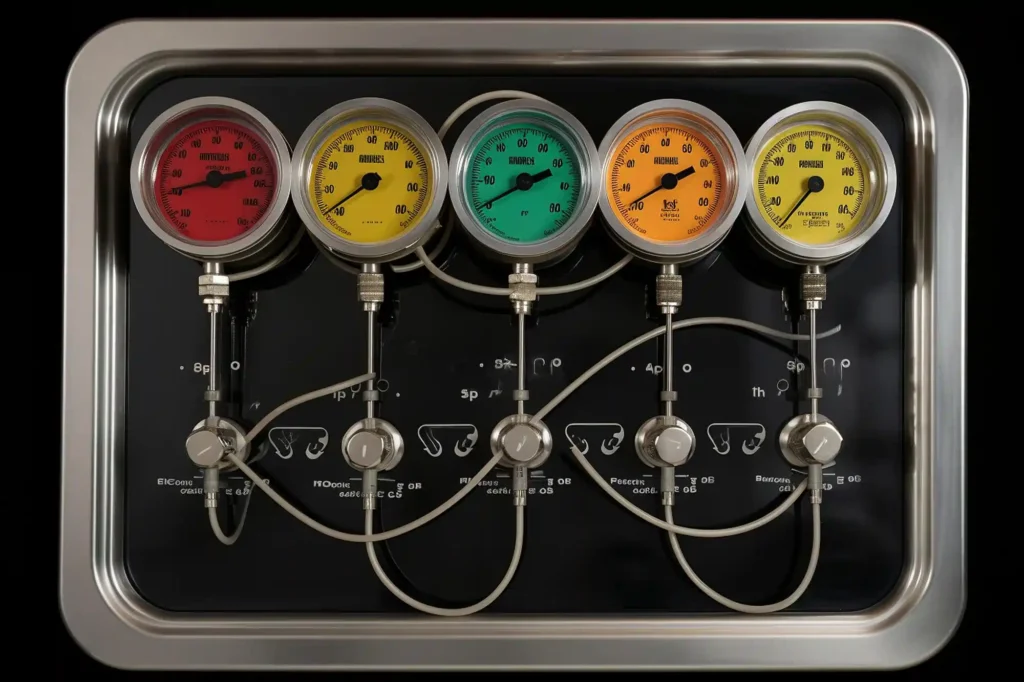

Flow Gauges
Precision instruments for monitoring flow rates of drilling mud, gas, and process fluids.
- Types: Differential Pressure • Turbine • Coriolis • Ultrasonic • Rotameter
- Forms: Stainless steel bodies • Glass tubes • Clamp-on designs
-
Properties:
- Flow Range: 0.01–10,000 m³/h
- Accuracy: ±0.1%–1% of reading
- Pressure Rating: Up to 600 bar
- Protection: IP66/IP67 • ATEX/IECEx compliant
- Temp Range: –50°C to +250°C
- Features: High accuracy at variable flow • Suitable for multiphase and slurry fluids • Non-intrusive clamp-on options • Real-time digital output
- Applications: Applications: Mud circulation • Gas lift • Fuel measurement • Water injection • Ballast and bilge monitoring

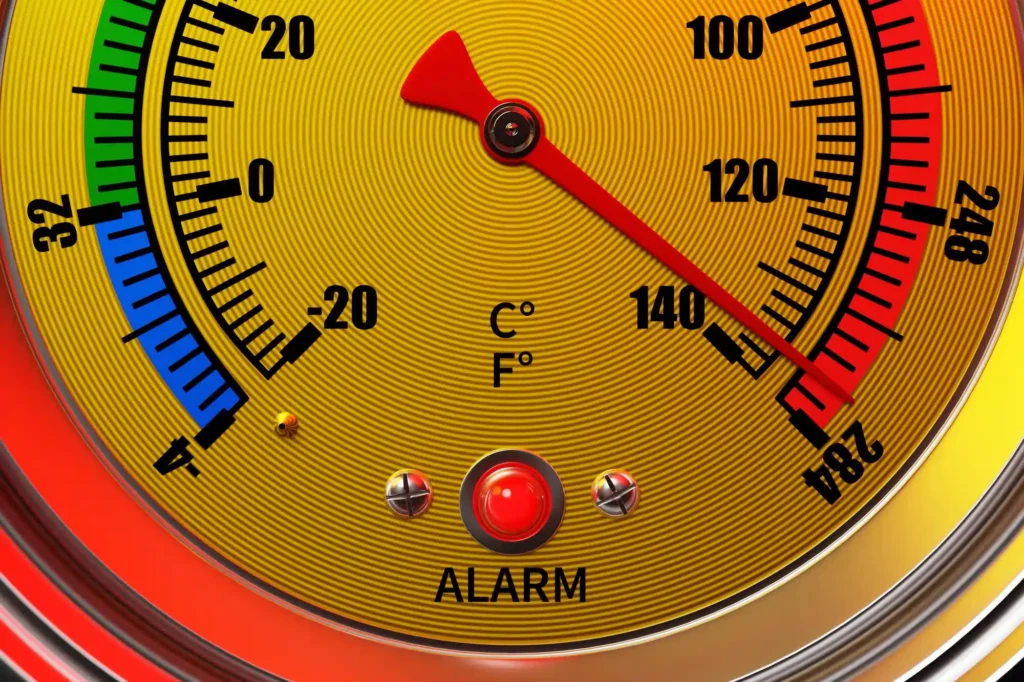

Temperature Gauges
Essential devices to assess temperature of fluids, gases, and equipment in drilling and marine systems.
- Types: Bimetallic • Gas-filled • Resistance Temperature Detectors (RTD) • Thermocouples
- Forms: Stainless steel stems • Remote capillary • Digital display modules
-
Properties:
- Temp Range: –200°C to +600°C
- Accuracy: ±0.25%–1% of span
- Stem Lengths: 50–500 mm
- Protection: IP67/IP68 • Explosion-proof
- Response Time: <5 seconds
- Features: Rugged design • Fast response • Remote reading capability • Intrinsically safe variants
- Applications: Monitoring process fluids, drilling equipment in oilfields, offshore platforms, marine vessels • Refineries • Power generation
METERS
Precision devices for measuring flow, gas, and fluid levels in critical oil, gas, and marine operations.

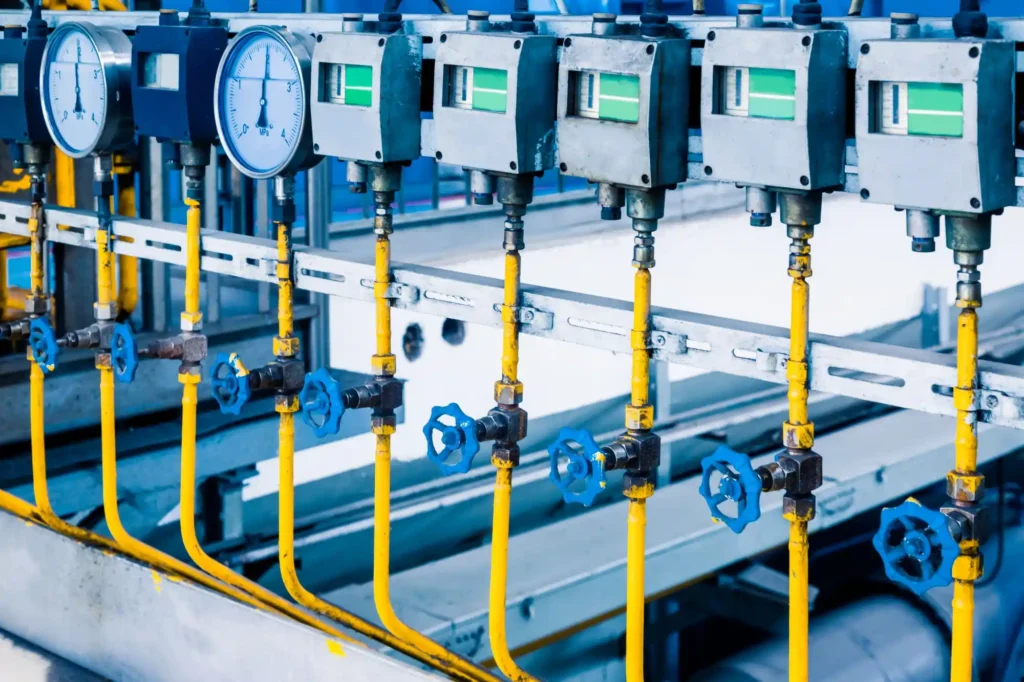

Flow Meters
Measure liquid or multiphase flow rates with high accuracy in critical systems.
- Types: Coriolis • Ultrasonic • Turbine • Electromagnetic
- Forms: Inline • Clamp-on • Insertion • Differential Pressure
-
Properties:
- Accuracy: ±0.1–0.5%
- Flow Range: up to 25,000 m³/h
- Pressure Ratings: up to 400 bar
- Protection: IP66/IP67 • ATEX/IECEx compliant
- Temperature Range: –200°C to +450°C
- Features: High precision for custody transfer • No moving parts (Coriolis/Ultrasonic) • Corrosion-resistant • Real-time diagnostics • Multiphase compatibility
- Applications: Oil & gas pipelines • Refineries • LNG plants • Marine fuel monitoring • Chemical processing
Gas Meters
Professional-grade measurement of natural gas and hydrocarbon volume and mass flow rates.
- Types: Diaphragm • Rotary • Turbine • Ultrasonic • Coriolis
- Forms: Inline • Skid-mounted • Portable test meters • Remote telemetry units
-
Properties:
- Accuracy: ±0.5–1%
- Flow Capacity: up to 160,000 m³/h
- Pressure Ratings: up to 100 bar
- Protection: IP65/IP68 • ATEX/IECEx certified
- Features: High turndown ratio • Remote data transmission • Low maintenance • Explosion-proof enclosures • Smart metering options
- Applications: Natural gas distribution • Offshore platforms • Petrochemical plants • Industrial furnaces • Power generation

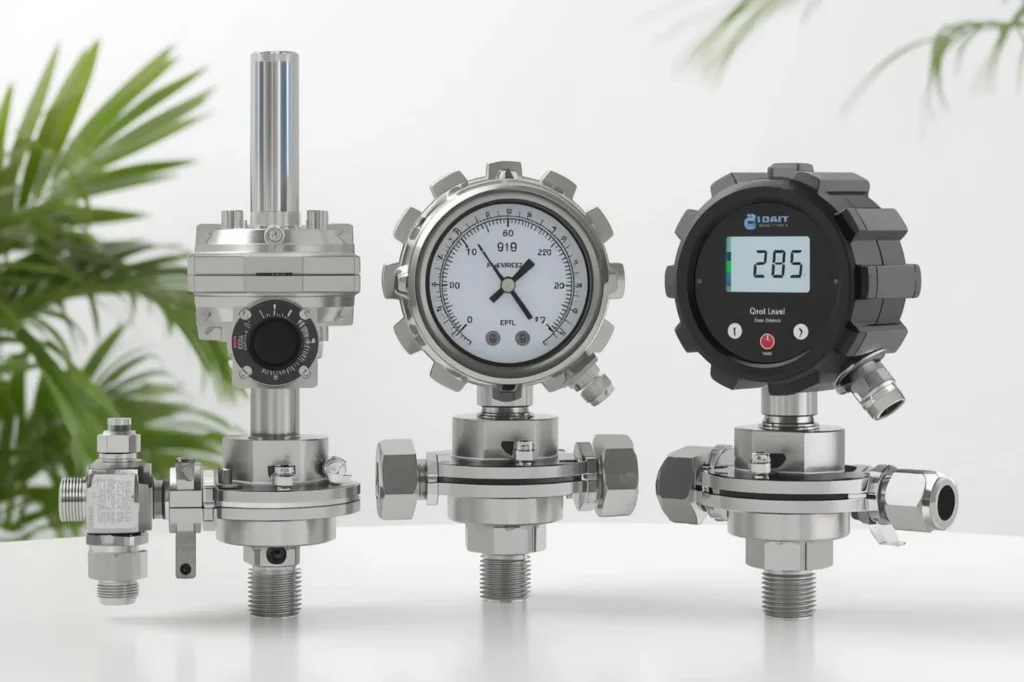

Level Meters
Critical measurement of fluid levels in tanks, risers, and subsea chambers.
- Types: Radar • Ultrasonic • Magnetic Float • Differential Pressure • Capacitance
- Forms: Top-mounted • Side-mounted • Subsea-integrated • Non-contact sensors
-
Properties:
- Accuracy: ±2 mm
- Measuring Range: up to 70 m
- Pressure Ratings: up to 400 bar
- Protection: IP66/IP68 • Explosion-proof
- Features: Non-intrusive measurement • Suitable for harsh/foaming liquids • Redundant safety alarms • Digital display & remote integration • Corrosion-resistant housings
- Applications: Oil storage tanks • Offshore risers • Subsea chambers • Marine cargo tanks • LNG terminals
MONITORING SYSTEMS
Critical systems for real-time insights into drilling, well integrity, and operational safety.

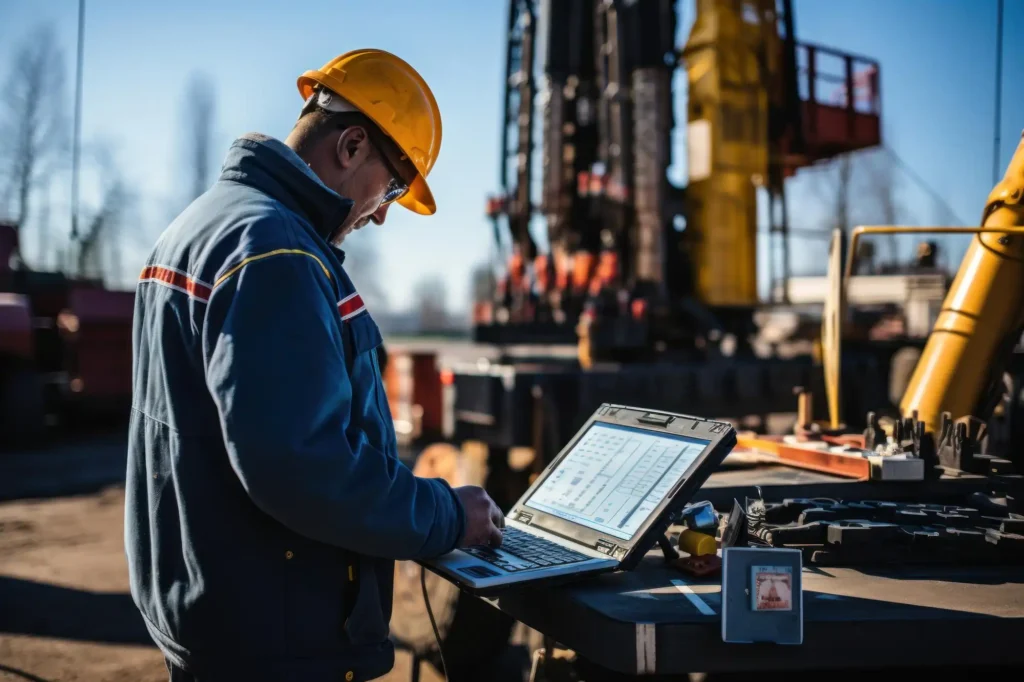

Drilling Monitoring Systems
Real-time data acquisition for enhanced drilling efficiency and safety.
- Types: Surface • Downhole • Integrated
- Forms: Wired • Wireless • Cloud-based
-
Properties:
- Data Parameters: Torque, RPM, pressure, vibration
- Accuracy: ±0.5–2% FS
- Protection: IP67/IP68 • ATEX/IECEx certified
- Connectivity: Modbus • 4-20 mA • IoT-enabled
- Weight: 5–50 kg (surface units)
- Features: Real-time analytics • Remote monitoring • Rugged for harsh environments • Predictive maintenance alerts
- Applications: Real-time drilling control in oilfields, offshore platforms, marine vessels • Geothermal drilling • Mining

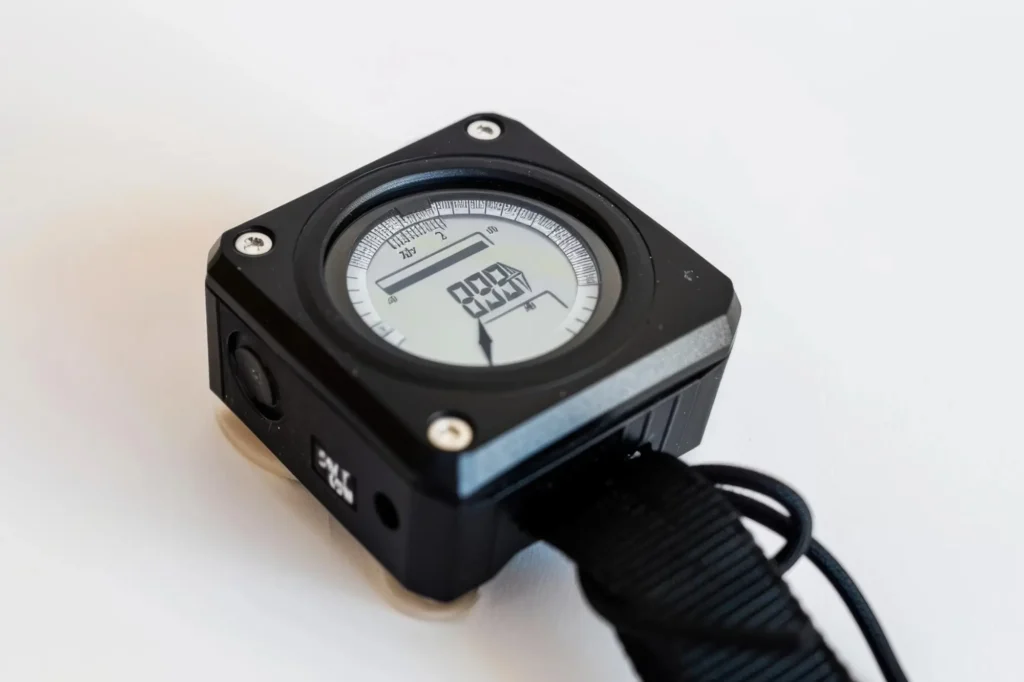

Wellbore & Mud Monitoring Systems
Wireless sensors for precise wellbore and mud parameter tracking.
- Types: Mud Logging • Gas Detection • Flow Monitoring
- Forms: Fixed Sensors • Portable Units • Wireless Networks
-
Properties:
- Data Parameters: Mud density, flow rate, gas composition, H₂S levels
- Measurement Range: 0–10,000 psi (pressure) • -40 to 150°C
- Accuracy: ±1% for density • ±2% for flow • Gas detection sensitivity <1 ppm
- Protection: Explosion-proof • ATEX/IECEx certified
- Connectivity: Wireless (LoRa/5G) • SCADA integration • Data logging modules
- Operating Temp: -20°C to +150°C
- Features: Wireless sensors • Gas monitoring for safety • High corrosion resistance • Real-time mud property analysis
- Applications: Wellbore stability, mud flow monitoring in oilfields, offshore platforms • Petrochemical processing • Environmental monitoring
Wellhead & Riser Monitoring Systems
Acoustic and structural monitoring for real-time wellhead and riser integrity management.
- Types: Acoustic • Structural Health • Pressure & Stress Monitoring
- Forms: Subsea Mounted • Clamp-on • Remote Monitoring Units
-
Properties:
- Data Parameters: Stress, strain, vibration, acoustic emissions, pressure
- Measurement Range: Up to 5000 m depth • 0–1000 Hz (vibration)
- Accuracy: ±0.2–1% FS (structural sensors)
- Protection: IP68 • Deepwater rated up to 3,000 m • Corrosion-resistant alloys
- Connectivity: Fiber optic • Acoustic telemetry • Subsea wireless links
- Operating Temp: -40°C to +200°C
- Features: Structural fatigue detection • Acoustic leak monitoring • Subsea-ready rugged build • Automated safety alarms
- Applications: Wellhead and riser monitoring in oilfields, offshore platforms, marine vessels • Subsea production • Pipeline integrity
